*Surface Finished could be Black Or Chrome Based on Current Batch*
Product Specification:

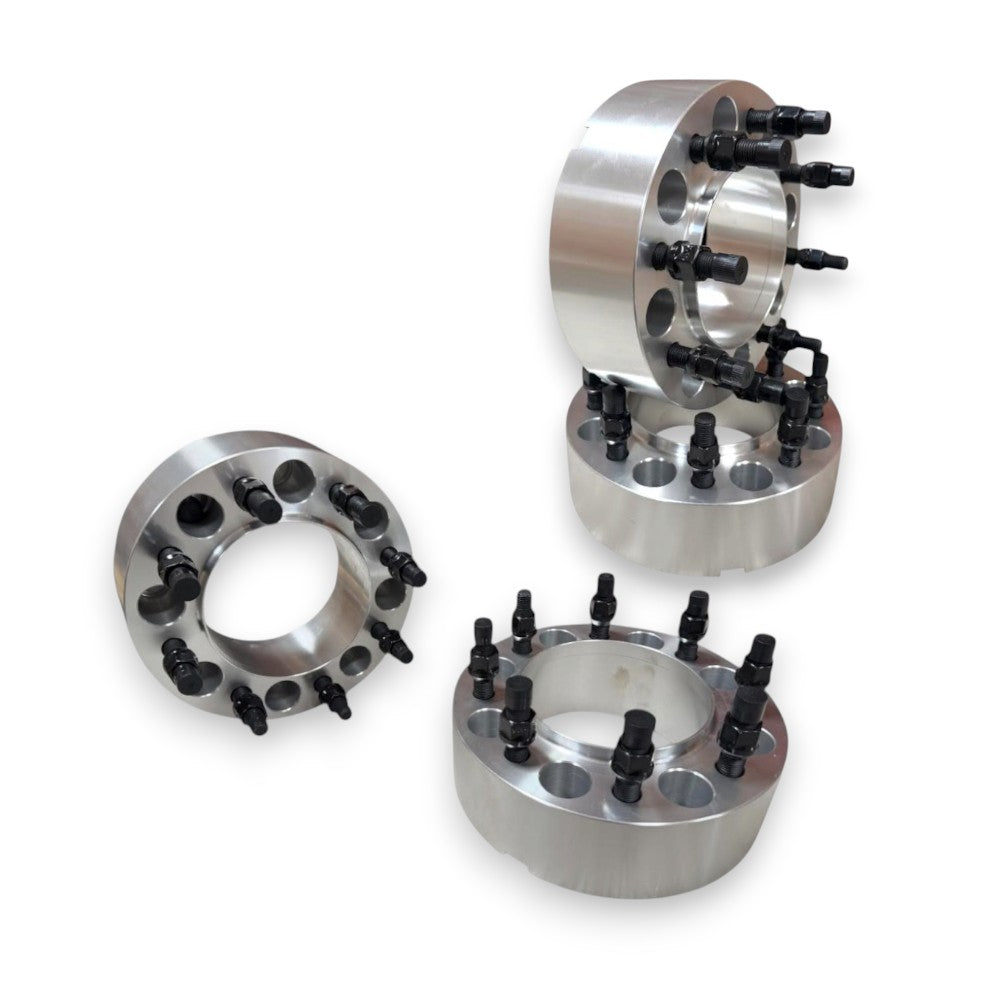

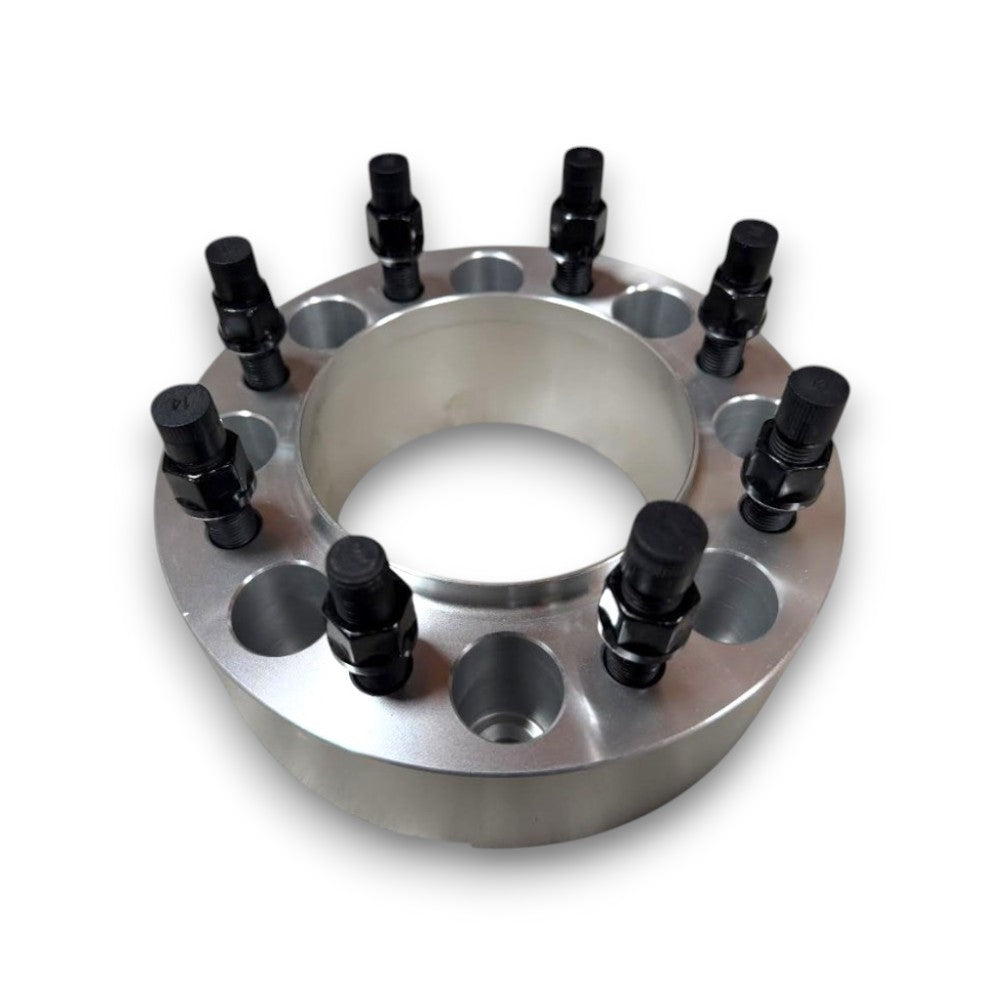

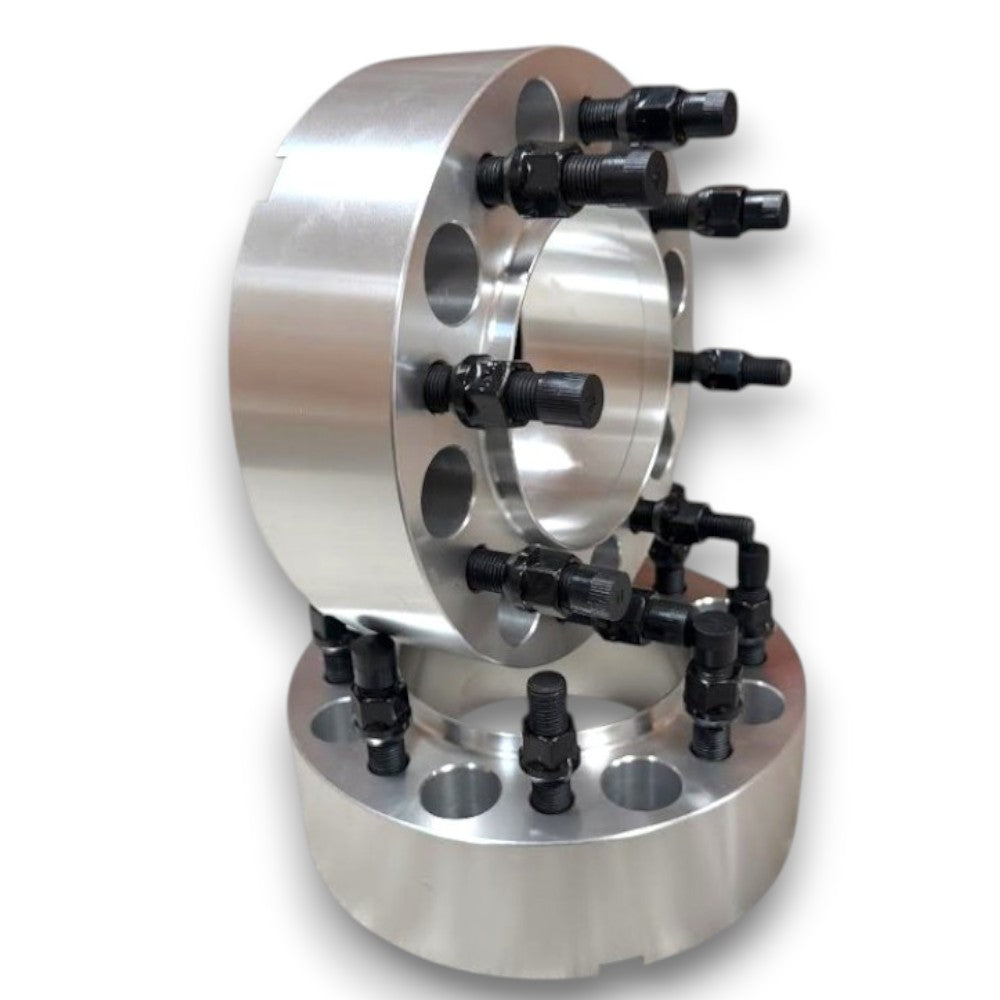

About the Adapter
Adapter Thickness: 2”
Adapter Bolt Pattern Fit to Hub: 8x170mm
Adapter Bolt Pattern Fit to Wheel: 8x170mm
Adapter Center Bore: 125mm
Adapter Hub Ring: Yes
Adapter Overall Diameter: 215mm
Adapter Stud Thread Pitch: M14x1.5
Adapter Stud Grade: 12.9
Adapter Color: Chrome or Black Depending on Current Batch
Adapter Material: Cold Forged 6061 T6 Grade Aluminum
Requirements of the Vehicle Specification
Required Vehicle Hub Bolt Pattern: 8x170mm
Required Vehicle Hub Center Bore: 125mm or smaller
Required Vehicle Hub Stud Thread: M14x1.5
Min Required Vehicle Fender Gap: 2”
Max Vehicle Hub Stud Length: 2”
*If your stud is longer than 2” you will need to trim it to use the adapter.
Requirements of the Wheel Specification
Required Vehicle Wheel Bolt Pattern: 8x170mm
Required Vehicle Wheel Center Bore: 125mm or smaller
Required Vehicle Wheel Lug Thread: M14x1.5
Required Vehicle Wheel Lug Nuts Hex: Based on your Wheel
